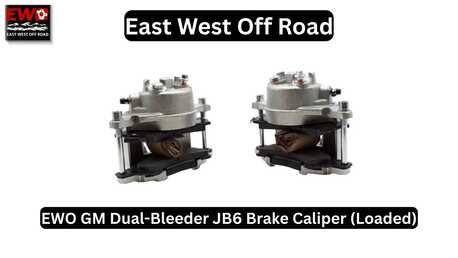

EWO GM Dual-Bleeder JB6 Brake Caliper
Heavy-Duty Engineering & Technical Specs
This is a 100% Brand New New Casting Caliper—not a rebuild. Engineered for maximum rigidity and heat dissipation, this Cast Iron Brake Caliper features a clean silver housing and arrives ready to be abused on the rocks or the highway.
Massive 74mm (2-15/16") Clamping Force
The heart of this Single Piston Floating Caliper is a massive 74mm Piston Caliper (2-15/16" Piston). This provides the hydraulic leverage required for 3/4-ton 4WD application performance, delivering consistent, powerful braking even when running 37" tires or heavier.
The Ambidextrous Dual-Bleeder Advantage
Eliminate the frustration of ordering the wrong side. This Ambidextrous Caliper features a unique Dual Bleeder Screw Design. Because it is a Dual Bleeder Caliper, you can install it on either the Left (Driver) or Right (Passenger) side and always have a bleeder screw at the highest point for a perfect gravity or pressure bleed.
Precision Mounting & Universal Fit
Designed with a standard 7.045” Mounting Span, this Slider Caliper is the primary choice for RuffStuff Specialties Brakes, East West Off Road Brake Parts, and builds requiring EWO R2236, R2236-Kit-1, or RuffStuff R2236 specifications.
The Ultimate GM Disc Brake Conversion Caliper
If you are performing a GM 14 Bolt Disc Brake Conversion or a Dana 60 Rear Disc Swap, this is the specific off road brake caliper you need. It is designed to bolt directly to GM-style brackets on the most popular heavy-duty axles in the 4x4 community.
Extensive Axle & Vehicle Compatibility:
Axle Swaps: Ideal for the 10.5 Corporate Axle, Dana 60 Rear Disc Swap, and Dana 44 HD.
Truck Applications: Direct fit or upgrade for Chevrolet K20 Pickup, GMC K2500, Chevy Suburban 2500, C20 Pickup, and K30 Single Rear Wheel.
Interchange: High-performance alternative to Cardone 18-4124, ACDelco 18FR596, Raybestos FRC4124, and any application calling for GM RPO JB6 or GM RPO JD6 (Hydroboost).
JB6 brake caliper loaded
Fully Loaded and Ready for the Trail
We’ve eliminated the hassle of sourcing hardware. This JB6 caliper with pads arrives fully equipped so you can spend less time in the garage and more time on the trail.
Semi-Metallic Brake Pads Included
Each Loaded Caliper Assembly includes black Semi-Metallic Brake Pads utilizing the common D52 Brake Pads (FMSI D52) profile. These GM Large Caliper Pads are easily upgradable later to Wilwood BP-10, Hawk HB103, Wagner MX52, or Performance Friction Carbon Metall compounds.
Complete Installation Hardware
Included with every GM dual bleeder brake caliper:
M10-1.5 Inlet: Standard metric plumbing for easy integration.
Metric Banjo Bolt: Includes new M10-1.5 banjo bolts and copper washers for a leak-free seal.
Ready to Mount: Includes pre-installed Steel Piston Brake Caliper slide pins.
EWO GM JB6 brake caliper
Frequently Asked Questions
Is there a core charge for this caliper?
No. Because this is an East West Off Road brake caliper featuring a brand-new casting, there is a No Core Charge Caliper policy. You keep your old parts and save on return shipping.
Can I use this for a 3/4-ton front axle replacement?
Yes. This is a premium Chevrolet 3/4 Ton 4WD Front Caliper replacement that meets or exceeds GM RPO JB6 and GM RPO JD6 (Hydroboost) specifications.
Why do I need the dual bleeder version?
The GM dual bleeder brake caliper allows the same part to be used on both sides of the vehicle. This simplifies your spare parts kit and guarantees you can properly purge air from the system regardless of your mounting orientation.
Will this work with my 14-bolt rear disc conversion brackets?
If your brackets are designed for a GM 3/4 ton brake caliper with a 7.045" mounting span, this is a direct bolt-on solution.
Don't compromise on your stopping power. Upgrade to the professional-grade EWO GM Dual-Bleeder JB6 Brake Caliper and finish your project with the confidence of a pro.
Order now to secure your set and get back on the dirt!
