How Does a Staircase Controller Work?
The automatic staircase light controller India works as follows:
PIR or IR sensor at the bottom detects a person starting to climb.
The controller activates Step 1's LED strip. After a brief delay, Step 2 activates, then Step 3, and so on in sequence.
When the person reaches the top, the PIR/IR sensor at the top detects exit.
The steps deactivate in reverse sequence — top steps first, then downward — creating a smooth cascading off effect.
If another person starts from the bottom while steps are still active, the controller resets the delay timer.
This step by step staircase light system is energy-efficient (each step LED runs for a limited time), visually dramatic, and significantly safer than an unlit staircase.
IR Staircase Controller — Classic, Reliable, Precise
An IR staircase controller uses beam sensors at the top and bottom of the staircase. The invisible IR beam is broken when a person passes through, triggering the sequential lighting sequence. IR beam detection is the most precise — it detects entry and exit exactly, with no false triggers from pets, passing shadows, or ambient temperature changes.
The Esysense IR staircase controller is the standard choice for residential staircases where precise on/off control is the priority and the sensor positions can be clearly defined at stair entry and exit points.
PIR Staircase Controller India — Wide Coverage for Complex Staircases
A PIR staircase controller India uses passive infrared sensors that cover a wider area — ideal for L-shaped, spiral, or curved staircases where a straight-line IR beam is not practical. The PIR sensor at each end of the staircase detects body heat approaching and triggers the sequential lighting.

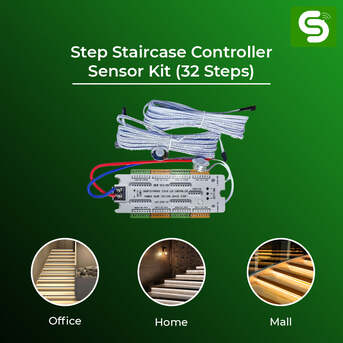

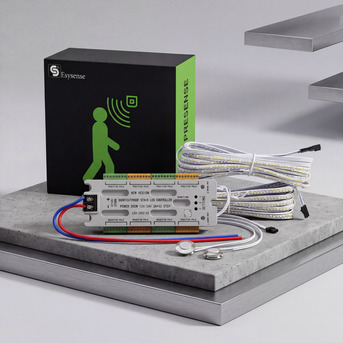

The Esysense PIR staircase controller is available as a complete step staircase controller sensor kit that includes both the controller unit and the PIR sensor pair — ready to install.
32-Channel Staircase Controller — ESY-P29 (India's Most Powerful)
The Esysense ESY-P29 is India's most powerful residential and commercial staircase controller. As a 32-channel staircase controller / 32-step staircase controller, it manages up to 32 independent LED strip channels — one per stair step. Key specifications:
32 independent output channels, each up to 15W
Total load capacity: 500W (12V DC output)
Adjustable sequence speed: from 50ms to 5000ms per step
Adjustable hold time: from 1 second to 60 seconds
Bi-directional detection: separate response for up and down travel
Compatible with all 12V LED strip lights
The ESY-P29 is the definitive LED staircase lighting controller for premium homes, villas, bungalows, boutique hotels, and high-end commercial staircases.
Strip Light for Staircase Controller — What to Pair With Your Controller
The strip light for staircase controller must match the controller's voltage specification (12V DC for all Esysense staircase controllers) and stay within the per-channel wattage limit:
12V 4.8W/meter strip (60 LED/m): Each stair channel uses ~0.5–1W per 10cm strip. Perfect for narrow stair nosing strips.
12V 9.6W/meter strip (120 LED/m): Brighter option for wider stairs or for additional visibility.
RGB 12V strip: For colour-changing effects if desired (requires colour selection from the controller).
The Esysense 12V LED DC strip light is specifically designed for staircase controller compatibility and is the recommended pairing for all Esysense staircase controller models.
Staircase Light Controller Price India — 2026 Guide
Esysense staircase light controller price India 2026:
PIR 32-Channel Staircase Controller ESY-P29: ₹3,100 onwards
12V LED Strip Light for Staircase (per meter): available at esysense.com
Full staircase lighting system kits with controller, sensor kit, and LED strips are available at esysense.com.
Explore More Smart Lighting Solutions by Esysense
Looking for more smart sensor lighting for your home or office? Explore our full range:
Staircase Controller for Homes, Malls, Hotels, Commercial — use-case guide — esysense.com/products/pir-32-channel-staircase-controller-500w
12V LED Strip Light for Staircase Steps — esysense.com/products/12v-led-dc-strip-light
LED Strip Light for Staircase, Room and Ceiling — https://esysense.com/produc ...
Frequently Asked Questions (FAQs)
Q: How does a staircase controller create the step-by-step light effect?
A: The controller activates each step's LED strip in sequence with a short delay between each activation. This creates a wave of light that travels up or down the staircase following the person's movement. The delay speed is adjustable on most Esysense models.
Q: How many steps can the Esysense ESY-P29 staircase controller handle?
A: The ESY-P29 handles up to 32 independent stair steps. For staircases with fewer steps, unused channels are simply left unconnected.
Q: What is the price of the 32-channel staircase controller in India?
A: The Esysense ESY-P29 32-channel staircase controller is priced at ₹3,100. The entry-level step staircase controller sensor kit for 8–16 steps starts at ₹390. Both available with free delivery at esysense.com.
