Characteristics
Main characteristics Manufacturer
DISPA
Nomenclature code
37325
Country of origin
T?rkiye
Type
Semi-automatic
Cutting pipes at 90?, mm
550
Cutting pipes at 45?, mm
340
Belt feed speed, m/min
20-100
Volume, l
30
Cutting a rectangular profile at 90?, mm
750x550
Cutting a rectangular profile at 45?, mm
340x550
Cutting a square profile at 90?, mm
550
Dimensions of the belt web, mm
6180x41x1.3
Cutting a square profile at 45?, mm
340 Connection parameters Engine power, kW
4
Cooling pump power, kW
0.09 Dimensions Length, mm
3200
Width, mm
1200
Height, mm
2050
Weight, kg
2300 Additional options Hydraulic system engine power, kW
1.5
Hydraulic tank capacity, l
25
Material feed height, mm
605
Lowering speed of the saw frame, m/min
0-100
Worm conveyor motor power, kW
0.37
Description
Peculiarities

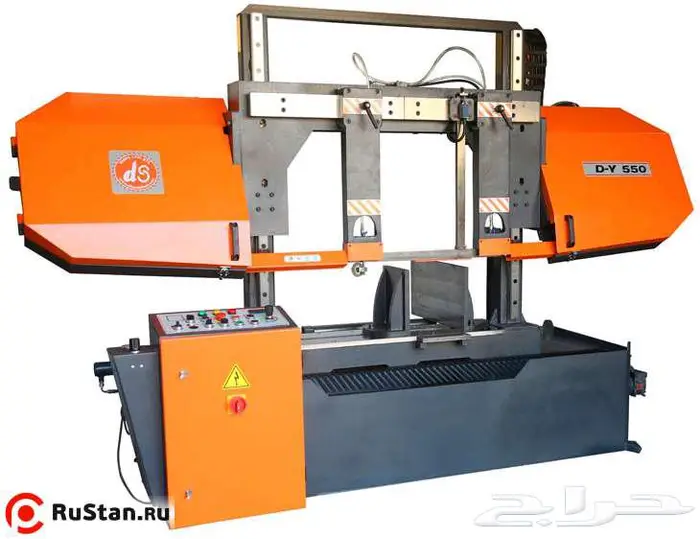

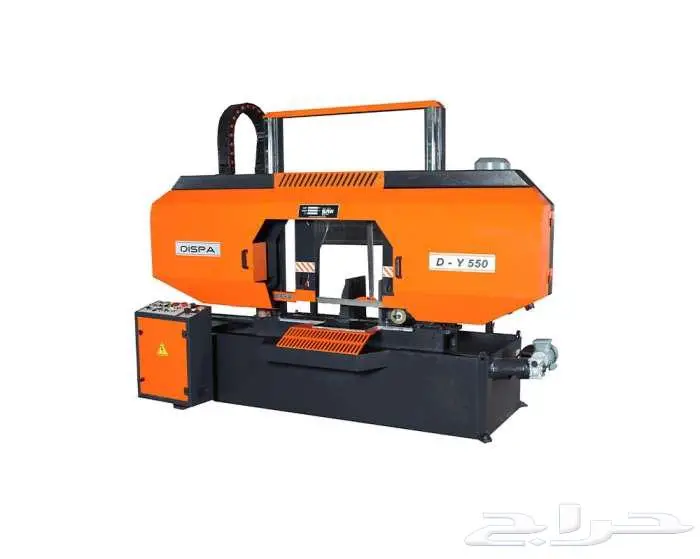

•The semi-automatic two-column band saw machine DISPA DY 550 is used for cutting workpieces up to 550 mm thick at an angle of 90? and 45?; •High productivity and maximum feed force thanks to a rigid two-column design. Clean and smooth cuts. Low material consumption in chips; •Automatically adjustable hydraulic pressure. Cutting adjustment via push-button control; •The belt feed speed is smoothly adjusted from 20 to 100 m/min. Pressure indicator for belt tension control; •Allows cutting workpieces at fixed angles of 15?, 30?, 45?, and 90?. The cutting angle is manually set using a vice. Recommendations
•Used in industry. Standard equipment: Hydraulic vice;
Chip conveyor; Roller conveyor 1.2 m;
Brush for removing chips;
Inverter;
LED lamp;
Tape web.
