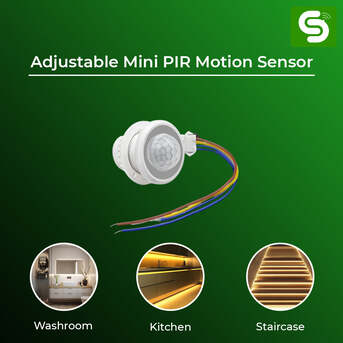

A Mini PIR Motion Sensor is a compact recessed motion detector that automatically switches lights ON when human movement is detected and turns them OFF after a preset delay. It is ideal for wardrobes, cabinets, corridors, washrooms, staircases and other indoor spaces where automatic lighting improves convenience and energy efficiency.

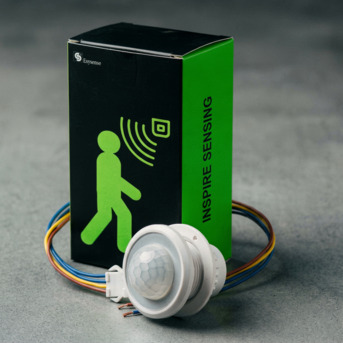

The Esysense ESY-P08 Mini PIR Motion Sensor features a 120° detection angle, 3–5 meter sensing range, adjustable delay time (15 sec, 45 sec & 5 min), Day/Night LUX adjustment, 110–240V AC operation, and a compact 30 mm cut-out for concealed installation.
Product Overview:

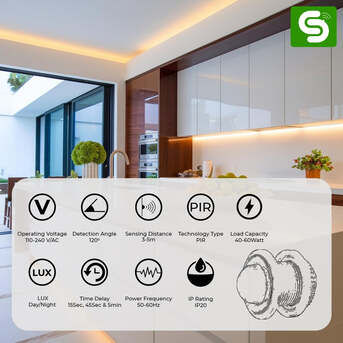

ESY-P08
(i) Operating Voltage: 110–240V AC
(ii) Detection Range: 3–5 m
(iii) Detection Angle: 120°
(iv) Delay Time: 15 sec / 45 sec / 5 min
(v) Ambient Light: Adjustable Day/Night LUX
(vi) Rated Load: 40–60W
(vii) Protection Rating: IP20
(viii) Best Applications: Wardrobes, Cabinets, Corridors, Washrooms
What is a Mini PIR Motion Sensor?
A Mini PIR Motion Sensor is a compact motion detector designed to fit inside ceilings, furniture or panels where a standard sensor would be too large. Using Passive Infrared (PIR) technology, it detects heat emitted by moving people and automatically controls connected lighting.
Once movement is detected:
(i) Light switches ON automatically.
(ii) The preset timer begins.
(iii) After no further movement is detected, the light switches OFF automatically.
This intelligent operation eliminates unnecessary lighting and helps reduce electricity consumption.
Bottom Line:
Its compact size makes it ideal for discreet installations while providing reliable automatic lighting control.
Key Features of the Esysense ESY-P08:
The ESY-P08 offers:
(i) Compact recessed installation
(ii) 120° motion detection
(iii) 3–5 meter sensing range
(iv) Adjustable delay timer
(v) Adjustable Day/Night LUX setting
(vi) 110–240V AC compatibility
(vii) 40–60W load capacity
(viii) IP20 protection
(ix) 30 mm ceiling cut-out
These features make it suitable for modern residential and commercial interiors.
Best Applications:
1. Wardrobes: Automatic lighting while accessing clothes and accessories.
2. Cabinets: Ideal for concealed cabinet lighting automation.
3. Corridors: Provides hands-free illumination in passageways.
4. Washrooms: Improves convenience while reducing unnecessary lighting.
5. Staircases: Enhances safety during night-time movement.
6. Storage Rooms: Automatically illuminates low-traffic utility spaces.
Bottom Line:
The compact design allows installation almost anywhere indoor automatic lighting is required.
Adjustable Settings:
Unlike basic motion sensors, the ESY-P08 provides user-adjustable controls.
Delay Time
Choose between:
(i) 15 Seconds
(ii) 45 Seconds
(iii) 5 Minutes
Day/Night LUX Control
Allows users to determine whether the sensor should operate:
(i) Only at night
(ii) Throughout the day
(iii) According to ambient light conditions
These adjustments improve both convenience and energy savings.
Mini PIR Motion Sensor vs Standard PIR Sensor
1. Mini PIR Sensor
(i) Size: Compact
(ii) Installation: Recessed
(iii) Detection Angle: 120°
(iv) Adjustable Delay: Yes
(v) Best Applications: Furniture & Interiors
(vi) Appearance: Concealed
2. Standard PIR Sensor
(i) Size: Larger
(ii) Installation: Surface Mount
(iii) Detection Angle: Varies
(iv) Adjustable Delay: Usually Yes
(v) Best Applications: Rooms & Hallways
(vi) Appearance: Visible
Bottom Line:
Mini PIR sensors provide the same smart automation while remaining almost invisible after installation.
Benefits of Installing a Mini PIR Motion Sensor
Installing a compact PIR sensor provides:
1. Automatic lighting
2. Reduced electricity bills
3. Longer LED life
4. Modern concealed appearance
5. Hands-free operation
6. Adjustable operating settings
7. Easy integration into furniture and ceilings
These benefits make the ESY-P08 suitable for homes, offices and commercial interiors.
Installation Tips
For the best performance:
1. Install using the recommended 30 mm cut-out.
2. Position the sensor where people naturally pass.
3. Avoid obstructions within the sensing area.
4. Configure the delay timer according to the application.
5. Adjust the LUX setting for daytime or night-only operation.
Correct installation ensures reliable motion detection and maximum energy savings.
Frequently Asked Questions
Q: What is a Mini PIR Motion Sensor?
A: A Mini PIR Motion Sensor is a compact automatic motion detector that switches lights ON when movement is detected and OFF after a preset delay.
Q: What is the sensing range of the ESY-P08?
A: The ESY-P08 detects motion within approximately 3–5 meters using a 120° detection angle.
Q: Can the delay time be adjusted?
A: Yes. Users can select 15 seconds, 45 seconds or 5 minutes depending on the application.
Q: Where can this sensor be installed?
A: It is suitable for wardrobes, cabinets, corridors, staircases, washrooms, storage rooms and other indoor lighting applications.
People Also Ask
Q: Can a Mini PIR Motion Sensor save electricity?
A: Yes. It ensures lights operate only when movement is detected, significantly reducing unnecessary power consumption.
Q: What makes a Mini PIR sensor different?
A: Its compact recessed design allows concealed installation while still providing reliable motion detection.
Q: Does it work during the daytime?
A: Yes. The adjustable Day/Night LUX control allows users to customize when the sensor becomes active.
Q: Is it suitable for modular furniture?
A: Yes. The compact 30 mm cut-out design makes it ideal for wardrobes, cabinets and custom furniture lighting.
Conclusion
A Mini PIR Motion Sensor is an ideal solution for homeowners and businesses looking to automate indoor lighting without compromising aesthetics. Its compact recessed design, intelligent motion detection and adjustable settings make it suitable for a wide range of indoor applications.
The Esysense ESY-P08 Mini PIR Motion Sensor combines 120° PIR detection, 3–5 meter sensing range, adjustable delay times, Day/Night LUX control, 110–240V AC compatibility, and a discreet 30 mm recessed installation, making it a reliable choice for wardrobes, cabinets, corridors, staircases and washrooms.
Written from direct product testing and manufacturer specifications by Esysense Tech Innovations Pvt. Ltd., Ghaziabad, India. All prices, specs and model references are verified against live product listings at esysense.com. Last updated: July 2026
